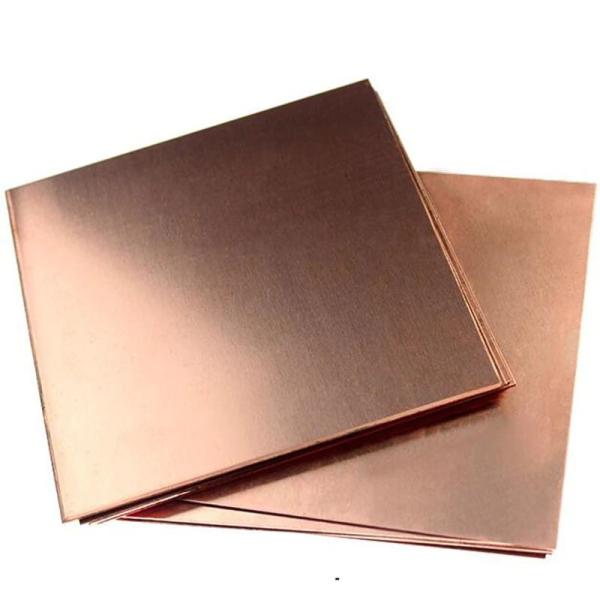

Alloy 110 102 Copper Plate Sheet For Structural Engineering
Description
Copper sheets are popular products for uses such as coins, architecture, motor vehicles, structural engineering, and medical equipment. We supply copper sheet products that are versatile in use but reliable in application. With other alloys available upon request, we carry these sheets in Alloy 110 and 102. These copper foil sheets are available in gauges/thicknesses up to 0.010”. Finally, we offer a range of tempers, including annealed, full hard, and as rolled.
Chemical Composition
| Grade | Chemical Composition(%) | |||||||||||||
| GB | JIS | Cu+Ag | P | Bi | Sb | As | Fe | Ni | Pb | Sn | S | Zn | O | |
| Refined Copper | T1 | C1020 | 99.95 | 0.001 | 0.001 | 0.002 | 0.002 | 0.005 | 0.002 | 0.003 | 0.002 | 0.005 | 0.005 | 0.02 |
| T2 | C1100 | 99.9 | - | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | - | 0.005 | - | - | |
| T3 | C1221 | 99.7 | - | 0.002 | - | - | - | - | 0.01 | - | — | - | - | |
| Oxygen Free Copper | TU0 | C1011 | 99.99 | 0.0003 | 0.0001 | 0.0004 | 0.0005 | 0.001 | 0.001 | 0.0005 | 0.0002 | 0.0015 | 0.0001 | 0.0005 |
| TU1 | C1020 | 99.97 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.003 | 0.002 | 0.004 | 0.003 | 0.002 | |
| TU2 | 99.95 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.004 | 0.002 | 0.004 | 0.003 | 0.003 | ||
Physical Properties
| Grade (JIS) | Temper | Vickers Hardness (HV) | Tensile Strength (Mpa) | Elongation (%) |
| C1100 | M (Soft) | ≤70 | ≥195 | ≥30 |
| C1201 | Y4 (1/4H) | 60-95 | 215-295 | ≥25 |
| C1220 | Y2 (1/2H) | 80-110 | 245-345 | ≥8 |
| etc. | Y (Full Hard) | 90-120 | 295-395 | ≥3 |
| T (Extra Hard) | ≥110 | ≥350 | - |
Standard Thickness
| 0.5mm | 0.6mm | 0.7mm | 0.8mm | 1mm | 1.2mm |
| 1.5mm | 1.8mm | 2mm | 2.5mm | 3mm | 4mm |
| 5mm | 6mm | 8mm | 10mm | 12mm | 15mm |
| 18mm | 20mm | 22mm | 25mm | 28mm | 30mm |
| 35mm | 40mm | 45mm | 50mm | 55mm | 60mm |
| 65mm | 70mm | 75mm | We Can Customize Any Size, Please Contact Us. | ||
| Remark: | |||||
| Thickness 0.5mm - 6.0mm , Width x Length (standard):600mm x 1500mm | |||||
| Thickness ≥ 8mm , Width x Length (standard) :1000mm x 2000mm | |||||
Application
Copper sheet can be made to do all sorts of deep drawing and bending stress components, such as manufacturing pins, rivets, gasket, nuts, conduits, the barometer spring, screen, radiator parts, etc.
FAQ
Q1. Are you a manufacturer or trader?
We are a manufacturer, and we can have our own factory produced
many steel products.
Q2. Whether your company supports Trade Assurance order?
Yes, we can (100% product quality protection; 100% on-time shipment
protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes, you can get available samples in our stock. If the samples
from new production, we will charge some reasonable cost, but this
amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info,
parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can
meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we
adhere to the principle of customer first.
Q7. How long is your delivery time?
Prompt or as your request.
Q8. What is your terms of payment?
30%TT in advance and the balance against of copy of B/L.
|
|
